Fits 2015-2018 GM 1500 trucks, 2015-2017 GM SUV's & 2017-2020 GM 2500/3500 vans with 8L90E 8-Speed Transmission.

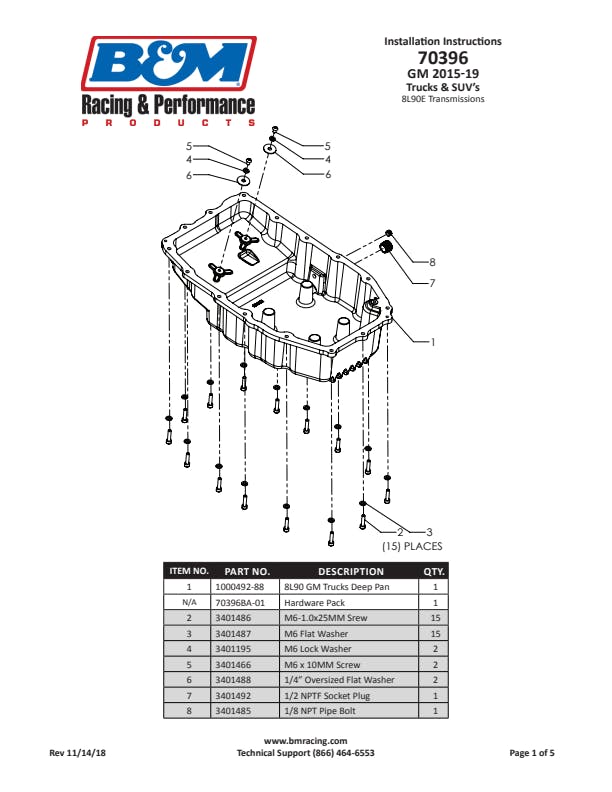

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3.4 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a drain port and the pan accepts the two factory magnets to capture wear materials protecting the transmission and for clean and easy servicing. Also includes 1/8 inch npt temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: Does Not fit 2010-2015 Camaro 8L90E transmissions. See Part# 70391 for 2010-2015 Camaro 8L90E transmission pan.
- Internal & External Cooling Ribs
- Increased Cooling Properties
- Lifetime Limited Warranty
- Custom B&M Logo
- Magnetic Drain Plug for Easy Servicing
- Adds 3.4-quarts of Transmission Fluid
- Includes Temperature Sensor Port
Information:
Fits 2015-2018 GM 1500 trucks, 2015-2017 GM SUV's & 2017-2020 GM 2500/3500 vans with 8L90E 8-Speed Transmission. Does Not fit 2010-2015 Camaro 8L90E transmissions.
Application Summary:
| Year |
Make/Model |
| 2017-2018 |
Chevrolet Express 2500 |
| 2017-2018 |
Chevrolet Express 3500 |
| 2015-2018 |
Chevrolet Silverado 1500 |
| 2017-2018 |
GMC Savana 2500 |
| 2017-2018 |
GMC Savana 3500 |
| 2015-2018 |
GMC Sierra 1500 |
| 2015-2017 |
GMC Yukon |
| 2015-2017 |
GMC Yukon XL |
| Attributes |
| Additional Fluid Capacity |
3.40 pq. |
| Additional Fluid Capacity (qts) |
3.4 |
| Additonal Fluid Capacity (qts) |
3.4 |
| Bolt Count |
15, 15 |
| Bolt Quantity |
15 |
| Bolt/Studs Included |
Yes, Yes |
| Bolts Or Studs Included |
Yes |
| Brand |
B&M, B&M |
| Bullet Point #1 |
Engraved B&M Logo |
| Bullet Point #2 |
Additional Fluid Capacity |
| Bullet Point #3 |
Magnetic Drain Plug for Easy Servicing |
| Bullet Point #4 |
Increased Cooling Effect |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Capacity |
14.5 |
| Category |
Transmission |
| Color |
Aluminum |
| Color/Finish |
Natural, Natural |
| Country of Origin (Primary) |
US |
| Drain Plug Included |
Yes, Yes |
| Emission Code |
5, 5 |
| Filler Plug Included |
No, No |
| Finish |
Natural, Zinc |
| Fits Trans Models |
8L90E |
| Gasket Included |
No, No |
| Gasket Or Seal Included |
No, No |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8708401110 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| Material |
A356.0-T6 Aluminum, A356.0-T6 Aluminum |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Oil Pan Gaskets Included |
No |
| Package Contents |
Pan, Hardware |
| part type |
Transmission Oil Pan |
| Product Type |
Automatic Transmission Pan, Automatic Transmission Pans |
| Sale Category |
Transmission and Drivetrain |
| SDR Required Flag |
N |
| SDS Sheet Number |
N |
| Standard Pack |
1 |
| Sub Category |
Transmission Hard Parts, Transmission Hard Parts |
| Trans Model |
8L90E |
| Transmission |
8L90E, 8L90E |
| Transmission Filter Included |
No, No |
| Transmission Type |
Automatic, Automatic |
| Warning |
California Proposition 65, California Proposition 65 |
| GTIN |
00019695954031 |
