Fits 2015-23 Mustang (S550) *Except GT350
This system features the 4-piston, S4 caliper mounted to a 12" x 1.100" 2 piece, slotted rotor and uses the popular DR1/HB100 pad type. The slot only rotors are mounted to 6061 billet aluminum hats using NAS high grade stainless hardware and come pre-assembled. All additional mounting hardware is also included. The SS4+ 2.0 Deep Stage system was designed to allow consumers to push the limits at the strip, yet still have a system that can be driven on the street. The SS4+ 2.0 Deep Stage system fits many 15in and larger wheels. NOTE: This system comes equipped with a high friction pad that is optimized for drag race applications. These pads often produce more dust and noise. Drag Race systems come standard in Clear and Fire Red caliper colors.
- All the benefits of our larger brake systems just in a smaller package to fit 15" wheels
- Fits most all beadlock wheels
- Designed specifically for heavy, fast cars, Can be used on the street
- 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ
- 2-Piece Slot Only Rotor w/Billet Aluminum Hat
Application Summary:
| Year |
Make/Model |
| 2015-2023 |
Ford Mustang |
| Attributes |
| Applications |
Ford Mustang 15-23 |
| Axle |
Front, Front |
| Box Count |
1 |
| Brand |
Baer Brakes, Baer Brakes |
| California Proposition 65 |
WARNING: Cancer - www.P65Warnings.ca.gov |
| Caliper |
S4, S4 |
| Caliper Color |
Clear |
| Category |
Brake |
| Country of Origin (Primary) |
US |
| Disc Brake Pad FMSI Number |
DR1 |
| Emission Code |
6, 6 |
| Export Description |
Brake Components, Brake Components |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8708.30.50 |
| Hazardous Material Code |
N |
| Hose Material |
Hoses Not Included, Hoses Not Included |
| Life Cycle Status Code |
Available to Order |
| Lug Count |
5 Lug, 5 Lug |
| Min Wheel Dia (verify using template) |
15in, 15 |
| part type |
Disc Brake Upgrade Kit |
| Product Line |
Deep Stage SS4plus 2.0, SS4+ Deep Stage Front |
| Product Type |
12 Inch SS4+ Deep Stage Front Brake Kit, 12 Inch SS4+ Deep Stage Front Brake Kit |
| Rotor Diameter |
12 |
| Rotor Surface |
SDZ |
| Rotor Thickness |
1.100, 1.100 |
| Rotor Type |
2-Piece, 2-Piece |
| SDR Required Flag |
N |
| Sub Category |
Service Kits |
| Surface Type |
Slotted |
| System Notes |
NOTE: This system comes equipped with a high friction pad that is optimized for drag race applications. These pads often produce more dust and noise., System Weight 38.8lbs |

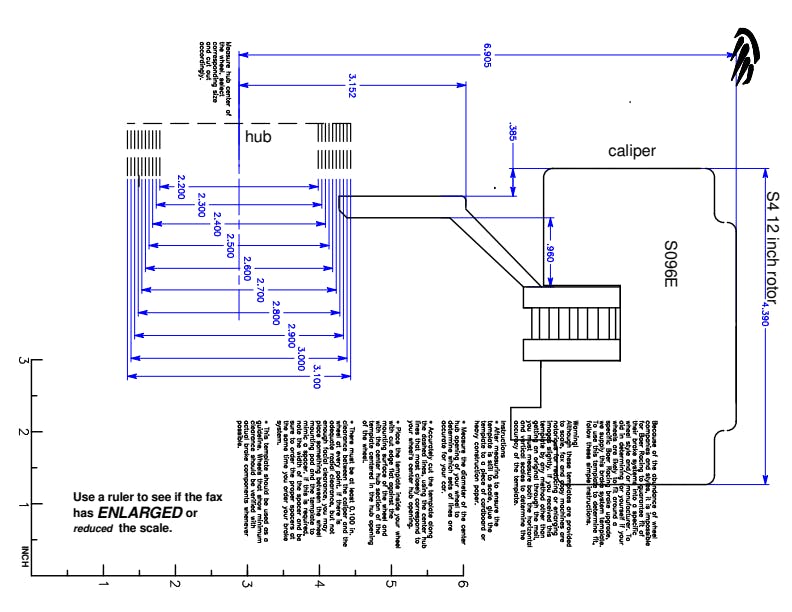

| Template |
S096E, S096E |
| Warranty Time |
1 |
| Wheel Lug/Bolt Pattern |
5x4.50, 5x4.50 |
| GTIN |
00844165054146 |
