Fits 1960-87 Chevy/GMC 2WD 1/2 Ton Trucks w/CPP Nodular Iron 2.5" Drop Spindle (5 Lug, 5x5"BC)
The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 14” Extreme+ fits most 18” or larger wheels.
- 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced 2618 Aluminum Forging
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
Information:

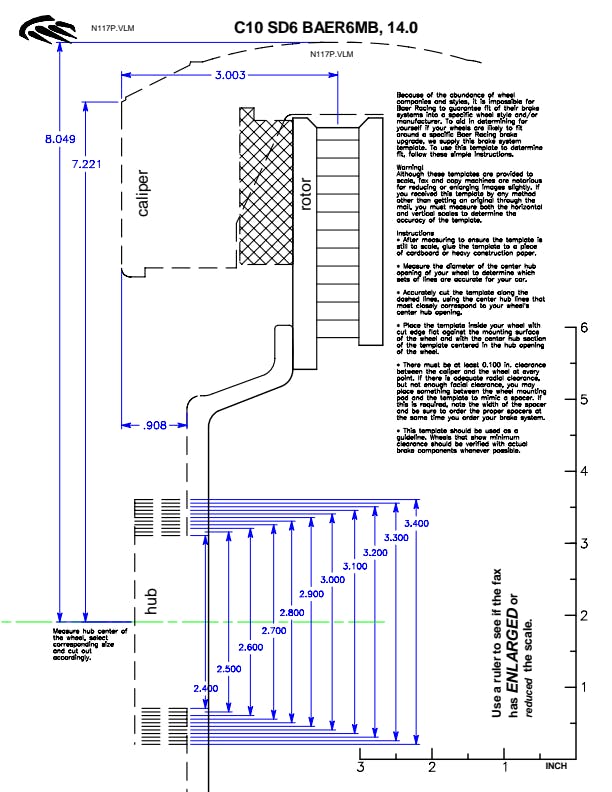

** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.**
Application Summary:
| Year |
Make/Model |
| 1975-1986 |
Chevrolet C10 |
| 1960-1974 |
Chevrolet C10 Pickup |
| 1967-1986 |
Chevrolet C10 Suburban |
| 1960-1966 |
Chevrolet Suburban |
| 1987-1989 |
Chevrolet Suburban |
| 1966 |
GMC 1000 |
| 1960-1965 |
GMC 1000 Series |
| 1975-1978 |
GMC C15 |
| 1967-1974 |
GMC C15/C1500 Pickup |
| 1979-1986 |
GMC C1500 |
| Attributes |
| Applications |
GM C10 Trucks 60-87 |
| Axle |
Front |
| Brand |
Baer Brakes |
| California Proposition 65 |
WARNING: Cancer - www.P65Warnings.ca.gov |
| Caliper |
6S |
| Caliper Color |
Comp Yellow |
| Category |
Brake |
| Country of Origin (Primary) |
US |
| Disc Brake Pad FMSI Number |
D1247 |
| Emission Code |
6, 6 |
| Export Description |
Brake Components, Brake Components |
| Fitment Notes |
w/CPP 2.5" Drop Modular Spindle (5 Lug, 5x5BC), w/CPP 2.5 inch Drop Modular Spindle (5 Lug, 5x5BC) |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8708395030 |
| Hazardous Material Code |
N |
| Hose Material |
Stainless Steel |
| Life Cycle Status Code |
Available to Order |
| Lug Count |
5 Lug, 5 Lug |
| Min Wheel Dia (verify using template) |
18, 18 |
| part type |
Disc Brake Upgrade Kit |
| Product Line |
14 Inch Extreme+, 14 Inch Extreme+ |
| Product Type |
14 Inch Extreme+ Front Brake Kit, 14 Inch Extreme+ Front Brake Kit |
| Rotor Thickness |
1.250, 1.250 |
| Rotor Type |
2-Piece, 2-Piece |
| SDR Required Flag |
N |
| Spindle Type |
CPP Nodular Iron 2.5" Drop Spindles, CPP Nodular Iron 2.5" Drop Spindles |
| Spindles Included |
No, No |
| Sub Category |
Service Kits |
| Surface Type |
Slotted, Drilled & Zinc Plated, Slotted, Drilled & Zinc Plated |
| System Notes |
Fits CPP 2.5" nodular drop spindles: CP30106-1 (1960-1962 C10), CP30106-2 (1963-1970 C10), CP30106-3 (1971-1972 C10) or CP30106-4 (1973-1987 C10), Fits CPP 2.5" nodular drop spindles: CP30106-1 (1960-1962 C10), CP30106-2 (1963-1970 C10), CP30106-3 (1971-1972 C10) or CP30106-4 (1973-1987 C10) |
| Template |
N117P, N117P |
| Warning |
California Proposition 65 |
| Warranty Time |
1 |
| Wheel Lug/Bolt Pattern |
5x5.00, 5x5.00 |
| Wheel Stud Size |
1/2-20" x 2.25", 1/2-20 x 2.25 inch |
| GTIN |
00090127876374 |
