Fits 1973-87 Chevy/GMC 2WD 1/2 Ton Trucks w/DSE Forged Aluminum 2.5" Drop Modular Spindles
The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets, stainless braided hoses and hardware are also included. The 14” Extreme+ fits most 18” or larger wheels.
- 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced 2618 Aluminum Forging
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
Information:

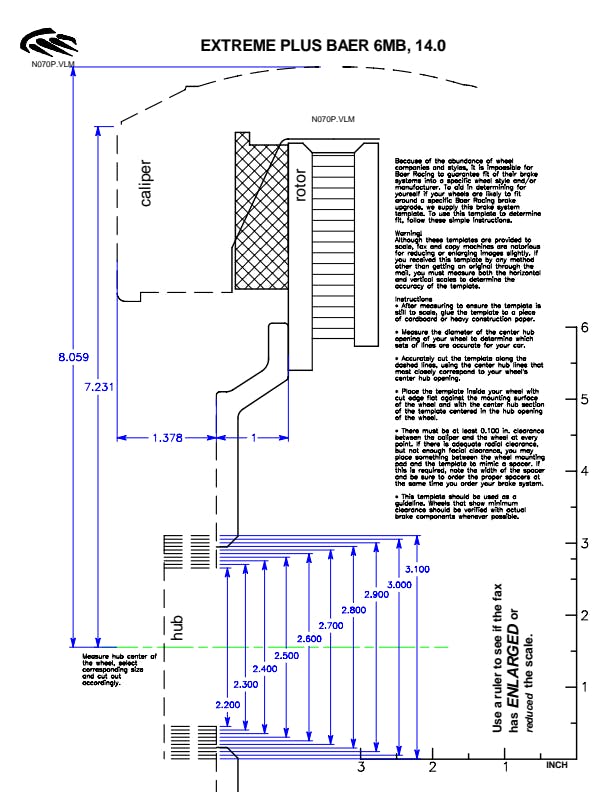

** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.**
Application Summary:
| Year |
Make/Model |
| 1975-1986 |
Chevrolet C10 |
| 1973-1974 |
Chevrolet C10 Pickup |
| 1973-1986 |
Chevrolet C10 Suburban |
| 1987 |
Chevrolet R10 |
| 1987-1988 |
Chevrolet R10 Suburban |
| 1975-1978 |
GMC C15 |
| 1975-1978 |
GMC C15 Suburban |
| 1973-1974 |
GMC C15/C1500 Pickup |
| 1973-1974 |
GMC C15/C1500 Suburban |
| 1979-1986 |
GMC C1500 |
| 1979-1986 |
GMC C1500 Suburban |
| 1987 |
GMC R1500 |
| 1987-1988 |
GMC R1500 Suburban |
| Attributes |
| Applications |
GM C10 Trucks 60-87 |
| Axle |
Front |
| Brand |
Baer Brakes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Caliper |
6S |
| Caliper Color |
Fire Red |
| Category |
Brake |
| Country of Origin (Primary) |
US |
| Disc Brake Pad FMSI Number |
D1247 |
| Emission Code |
6, 6 |
| Export Description |
Brake Components, Brake Components |
| Fitment Notes |
w/DSE Forged Aluminum Modular Spindles, w/DSE Forged Aluminum Modular Spindles |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8708305090 |
| Hazardous Material Code |
N |
| Hose Material |
Stainless Steel |
| Life Cycle Status Code |
Available to Order |
| Lug Count |
5 Lug, 5 Lug |
| Min Wheel Dia (verify using template) |
18, 18 |
| part type |
Disc Brake Upgrade Kit |
| Product Line |
14 Inch Extreme+, 14 Inch Extreme+ |
| Product Type |
14 Inch Extreme+ Front Brake Kit, 14 Inch Extreme+ Front Brake Kit |
| Rotor Thickness |
1.250, 1.250 |
| Rotor Type |
2-Piece, 2-Piece |
| SDR Required Flag |
N |
| Spindle Type |
DSE Forged Alum Modular 2.5" Drop Spindles, DSE Forged Alum Modular 2.5" Drop Spindles |
| Spindles Included |
No, No |
| Sub Category |
Service Kits |
| Surface Type |
Slotted, Drilled & Zinc Plated, Slotted, Drilled & Zinc Plated |
| System Notes |
Fits DSE 2.5" drop, forged aluminum modular spindles p/n 032090DS. Bolt on hub packs not included., Fits DSE 2.5" drop, forged aluminum modular spindles p/n 032090DS. Bolt on hub packs not included. |
| Template |
N072P, N072P |
| Warning |
California Proposition 65 |
| Warranty Time |
1 |
| Wheel Lug/Bolt Pattern |
5x4.75/5x5.00, 5x4.75/5x5.00 |
| GTIN |
00090127912164 |
