46mm Monotube Shock Absorber

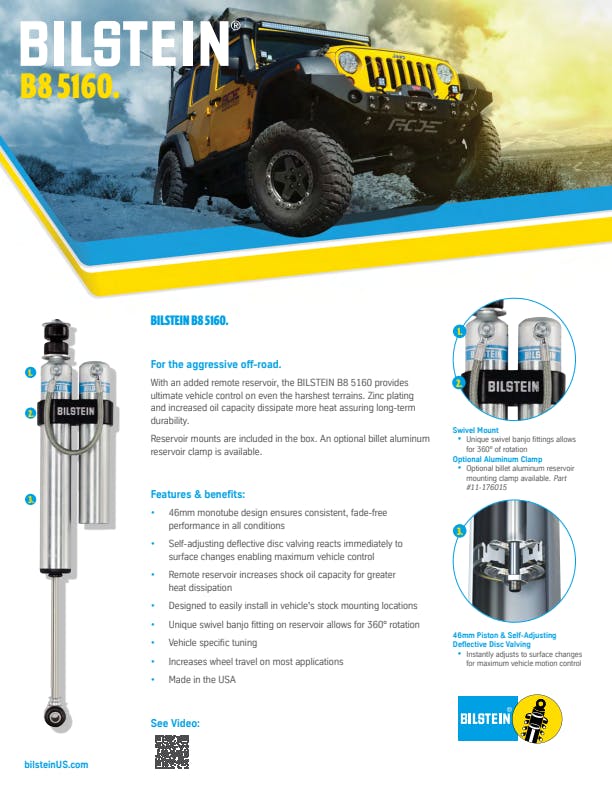

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Remote reservoir increases shock oil capacity for greater heat dissipation
- 46mm monotube design ensures consistent, fade-free performance in all conditions
Application Summary:
| Year |
Make/Model |
| 2024-2026 |
Toyota Tacoma |
| Attributes |
| Adjustable Damping |
Non-Adjustable |
| Billet Reservoir Clamp Included |
Yes |
| Body Design |
Smooth Body (Non-Coilover) |
| Boot Included |
Black Bellows |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) |
15.78 |
| Collapsed Length (mm) |
400.8 |
| Country of Origin (Primary) |
US |
| Extended Length (IN) |
25.44 |
| Extended Length (mm) |
646.2 |
| FAB |
46mm monotube design ensures consistent, fade-free performance in all conditions, Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control |
| Finish |
Zinc Plated |
| Harmonized Tariff Code (Schedule B) |
8708800050 |
| Hazardous Material Code |
N |
| Internal Design |
Monotube |
| Life Cycle Status Code |
Available to Order |
| Lower Mount Type |
Eye 19.1mm |
| PartType |
Shocks / Struts |
| Piston Diameter |
46mm |
| Reservoir |
Yes |
| SDR Required Flag |
Y |
| SDS Sheet Number |
USA SDS_Shock_Air Spring_V2_EN.pdf |
| Segment |
Light Truck |
| Series |
B8 5160 |
| Shaft Diameter |
14mm |
| Spring Seat Included |
No |
| Stroke/Travel Length (IN) |
9.66 |
| Stroke/Travel Length (mm) |
245.4 |
| Upper Mount Type |
Stem |
| Warranty Time |
24 |
| GTIN |
00651860960777 |
