Centerforce(R) SFI-certified steel flywheels are CNC-machined from billet steel for precise, no-hassle, bolt-in installation. See extended description for more info.

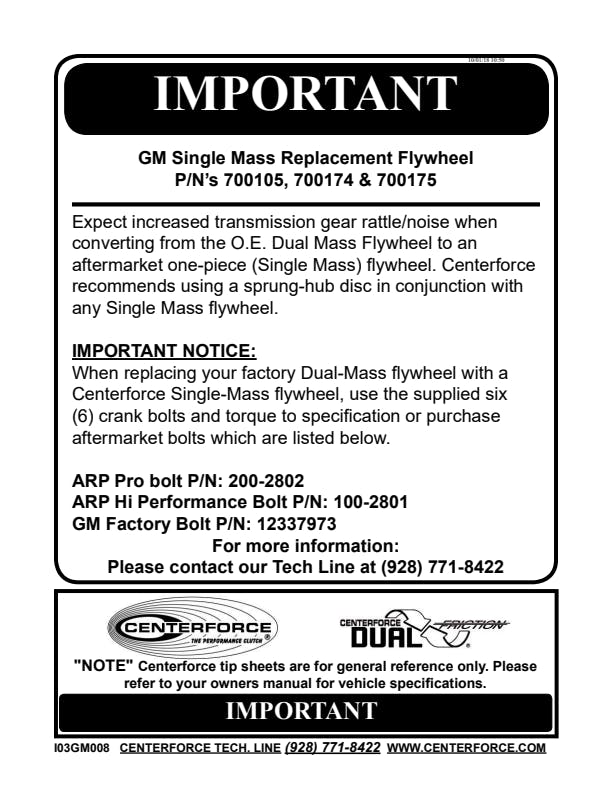

PLEASE NOTE: This is a single mass / one-piece conversion flywheel intended for use with a one-piece rear main externally balanced Chevy small-block mated to a ZF transmission from a 1989-1996 Corvette. Centerforce(R) steel flywheels are manufactured from high quality billet steel and match closely to the original equipment flywheel weight. Billet steel flywheels are available for popular import and domestic vehicles, including trucks. Centerforce steel flywheels are CAD/CAM-designed and CNC-machined from billet steel for precise, no-hassle, bolt-in installation. Centerforce billet steel flywheels are SFI-certified, so you know that you can count on them, on the street and on the track.
Application Summary:
| Year |
Make/Model |
| 1989-1996 |
Chevrolet Corvette |
| Attributes |
| ASIN |
B000JJO94A |
| Attribute Data |
2 |
| California Proposition 65 |
WARNING: Cancer - www.P65Warnings.ca.gov |
| Clutch Bolt Pattern |
24, 24 |
| Country of Origin (Primary) |
US |
| Crankshaft Bolt Hole Quantity |
6, 6, 6 |
| Emission Code |
Legal US |
| Flywheel Counter Balance Weight |
23.4 IN/OZ, 23.4, 23.4 |
| Flywheel Crank Bolt Qty |
6 |
| Flywheel Crank Bolt Size |
7/16 in x 20 x 0.875, 7/16 x 20, 7/16 in x 20 x 0.875 |
| Harmonized Tariff Code (Schedule B) |
8708998175 |
| Hazardous Material Code |
N |
| Includes |
Flywheel |
| Life Cycle Status Code |
Available to Order |
| Made In The USA |
Yes, Yes |
| Material |
Billet Steel, Billet Steel |
| NAFTA Preference Criterion Code |
B |
| Out of Package Weight |
27.5, 27.5 |
| Outside Diameter |
12.835 |
| Rear Main Seal Style |
1 |
| Replaceable Friction Surface |
N |
| Ring Gear O.D |
12.835 |
| Ring Gear O.D. |
12.835, 12.835 |
| Ring Gear OD |
12.835 |
| Ring Gear Tooth Count |
153 |
| SDR Required Flag |
N |
| Seal Type |
1, 1 |
| SFI 1.1 Approved |
Y, Y |
| Standard Pack |
1 |
| Tooth Quantity |
153, 153 |
| Warranty Time |
12 |
| GTIN |
00788442011746 |
