The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Application Summary:
| Year |
Make/Model |
| 1986-1995 |
Suzuki Samurai |
| 1989 |
Suzuki Sidekick |
| Attributes |
| Alignment Tool Included |
Yes, Yes |
| California Proposition 65 |
WARNING: Cancer - www.P65Warnings.ca.gov |
| Clutch Disc Diameter |
7.500, 7.500, 190 |
| Counterweight Assist |
YES, YES |
| Country of Origin (Primary) |
JP |
| Disc Material |
Organic, Organic |
| Disc Quantity |
1, 1 |
| Disc Type |
Full Face / Segmented, Full Face / Segmented |
| Disc Type Sprung Solid |
Sprung, Sprung |
| Emission Code |
Legal US |

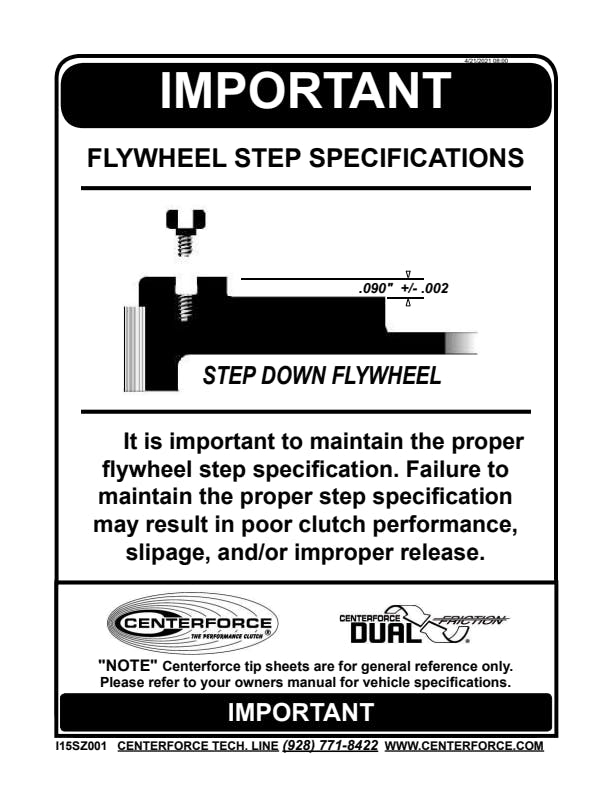

| Flywheel Step |
-.09, -.09 |
| Harmonized Tariff Code (Schedule B) |
8708935000 |
| Hazardous Material Code |
N |
| Input Shaft Diameter |
7/8, 7/8 |
| Input Spline Quantity |
20, 20 |
| Life Cycle Status Code |
Available to Order |
| Made In The USA |
Assembled, Assembled |
| Material |
Cast Iron Pressure Plate / Full Face and Segmented Organic Friction, Cast Iron Pressure Plate / Full Face and Segmented Organic Friction |
| Pilot Bushing Included |
Yes, Yes |
| Release Bearing Included |
Yes, Yes |
| SDR Required Flag |
N |
| Torque Capacity |
179, 179 |
| Warranty Time |
12 |
| GTIN |
00788442036152 |
