LMC Series Discs are built with carbon material in puc-style facings on both sides of the disc. These discs are made for Centerforce LMC pressure plates.
Centerforce brings together high-quality friction materials and patented processes to give you top-of-the-line discs. Centerforce offers discs for the Centerforce I, Centerforce II, Dual Friction, LMC, and DFX series clutches. Each disc is designed to work best with a corresponding Centerforce pressure plate. LMC Series Discs are built with carbon material in puc-style facings on both sides of the disc. These discs are made for Centerforce LMC pressure plates.

Application Summary:

Year Make/Model
1963-1969 Ford Fairlane
1979 Ford Fairmont
1964-1970 Ford Falcon
1967 Ford Galaxie
1968-1971 Ford Galaxie 500
1975-1979 Ford Granada
1973-1977 Ford Maverick
1964-1973 Ford Mustang
1979 Ford Mustang
1982-2001 Ford Mustang
1969-1973 Ford Torino
1986 Mercury Capri
Attributes
ASIN B000VU17PG
Attribute Data 2
California Proposition 65 WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Disc Diameter 10.400, 10.400, 10.4, 264.2
Country of Origin (Primary) TH
Disc Material Organic/Carbon composite, Organic/Carbon composite, Organic/Carbon composite
Disc Type Segmented face, Segmented face, Segmented face
Disc Type Sprung Solid Sprung, Sprung, Sprung
Emission Code Legal US
Harmonized Tariff Code (Schedule B) 8708935000
Hazardous Material Code N
Includes Disc
Input Shaft Diameter 1-1/16, 1-1/16
Input Spline Quantity 10, 10
Inside Diameter of Friction Surface 164.8, 164.8
Life Cycle Status Code Available to Order
Made In The USA Assembled, Assembled
Material Segmented Organic Friction, Segmented Organic Friction
NAFTA Preference Criterion Code B
Out of Package Weight 4.75, 4.75
Outside Diameter of Friction Surface (Standard) 10.4
SDR Required Flag N

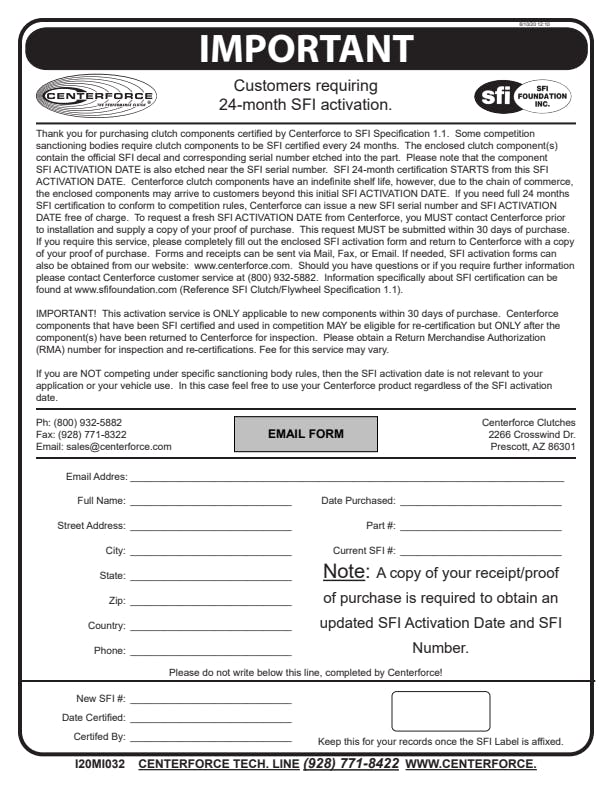

SFI 1.1 Approved Y, Y
Spline Diameter and Tooth Count 1-1/16"-10
Standard Pack 1
Warranty Time 12
GTIN 00788442019063
