1998-2004 Dodge Truck 255 LPH Pump Module System - Returnless with 220-20 OHM Fuel Sending Unit
1998-2003 Dodge Ram 1500/Ram 2500/Ram 3500 (2WD & 4WD Full Size Pickups)
- High Performance In-Tank EFI Fuel Pump Modules for 1991-2004 Dodge Trucks
- Choose from Return Style or Returnless Fuel Module
- Provisions for EVAP (Evaporative Emission Control System) – See the Installation Notes
- Inlets & Outlet Ports: -8 AN O-Ring Boss
- New Fuel Level Sender Included
- Optional Fill Vent Built Into Billet Aluminum Top – See the Installation Notes
- Includes Hydramat® - 3” x 15”
- Fits in Stock Factory Fuel Tanks
- Ideal for Use In Gen III Hemi Engine Swaps
- Billet Aluminum Flange, Clamp & Fuel Level Sender
- Black Anodized Finish
- Choose from 255 or 450 LPH (liters per hour) Pump
- Adjustable for Tank Depth
Information:

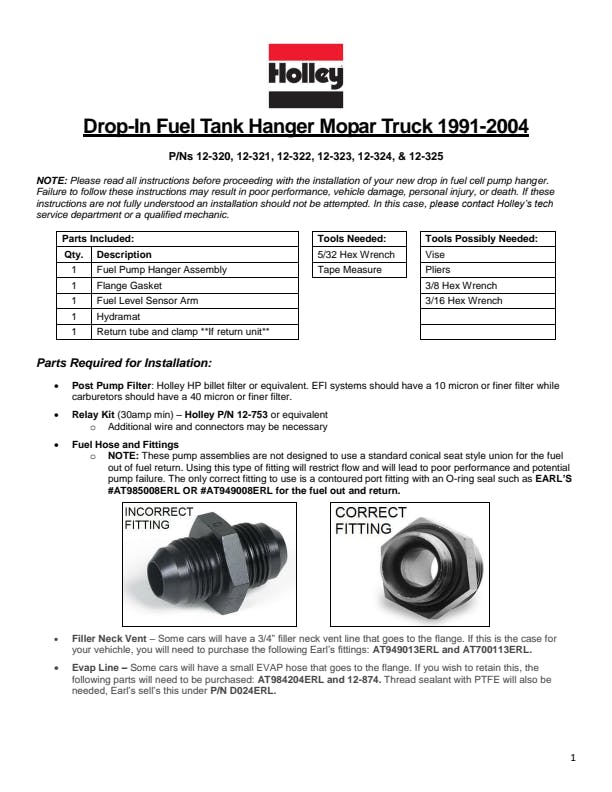

Filler Neck Vent - Some vehicles will have a 3/4" filler neck vent line that goes to the flange on the fuel module. If this is the case for your vehicle, you will need to purchase the following Earl's fittings: AT949013ERL and AT700113ERL.
EVAP Line - Some vehicles will have a small EVAP hose that goes to the flange on the fuel module. If you wish to retain this, the following parts will need to be purchased: AT984204ERL, and 12-874. Thread sealant with PTFE will also be needed - Use Earl's # D024ERL.
Application Summary:
| Year |
Make/Model |
| 1998 |
Dodge B1500 |
| 1998 |
Dodge B2500 |
| 1998 |
Dodge B3500 |
| 1997-2004 |
Dodge Dakota |
| 1998-2003 |
Dodge Durango |
| 1998-2003 |
Dodge Ram 1500 |
| 1998-2003 |
Dodge Ram 1500 Van |
| 1998-2003 |
Dodge Ram 2500 |
| 1998-2003 |
Dodge Ram 2500 Van |
| 1998-2003 |
Dodge Ram 3500 |
| 1998-2003 |
Dodge Ram 3500 Van |
| 1999-2001 |
Dodge Ramcharger |
| Attributes |
| Amp draw |
18 |
| Application |
1998-2004 Dodge Trucks |
| Average Current Draw |
18 |
| Average Flow Rating |
255 |
| Brand |
Holley, Holley |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category |
Air and Fuel Delivery |
| Clearance Category |
Air and Fuel Delivery |
| Connector Color |
Gray |
| Connector Quantity |
1 |
| Country of Origin (Primary) |
US |
| Discount Percentage |
26-50% |
| Emission Code |
5, 5 |
| Forced Induction HP@60PSI |
450, 450 |
| Free Flow GPH |
67, 67 |
| Free Flow LPH |
255, 255 |
| Fuel Filter Included |
Yes |
| Fuel Sending Unit Included |
Yes |
| Fuel Sending Unit Ohms |
220-20 Ohms, 220-20 Ohms |
| Fuel System |
EFI, EFI |
| Fuel Tank Pressure Sensor Included |
No |
| Fuel Type |
Gasoline, Gasoline |
| Gasket Or Seal Included |
Yes |
| Gasket Or Seal Material |
Rubber |
| GPH@60PSI |
60, 60 |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8409915085 |
| Hazardous Material Code |
N |
| Height |
Adjustable |
| Housing Material |
Aluminum |
| In Tank or External |
In Tank |
| Inlet Quantity |
One |
| Inlet Size |
8 AN O-Ring |
| Inlet Type |
8 AN ORB |
| Internal Or External Strainer |
External |
| Life Cycle Status Code |
Available to Order |
| Lock Ring Included |
No |
| Material |
Billet Aluminum and Steel, Billet Aluminum and Steel |
| NAFTA Preference Criterion Code |
B |
| Naturally Aspirated HP@60PSI |
600, 600 |
| Outlet Quantity |
One |
| Outlet Size |
8 AN, 8 AN |
| Outlet Type |
8 AN ORB |
| part type |
Fuel Pump Module Assembly |
| Product Type |
Fuel Pump Module, Fuel Pump Module |
| Pump Body Color |
Silver, Silver |
| Pump Type |
Electric, Electric |
| Regulator Included |
No, No |
| Resistance Ohms Empty |
220, 220 |
| Resistance Ohms Full |
20, 20 |
| Returnless |
Yes, Yes |
| Sale Category |
Air and Fuel Delivery |
| SDR Required Flag |
N |
| Universal Or Specific Fit |
Specific, Specific |
| Voltage |
12, 12 |
| Warning |
California Proposition 65, California Propsition 65 |
| Warranty |
Limited 90 Day, Manufacturer's Limited 90 Day Warranty |
| Wire Harness Included |
Yes, Yes |
| Wire Quantity |
4, 4 |
| GTIN |
00090127107324 |
