Performance Exhaust System, Part No. SES1230TT, 2013-2016 Scion FR-S H4-2.0L, 2013-2020 Subaru BRZ H4-2.0L, 2017-2020 Toyota 86 H4-2.0L.
The Injen Technology engineers are experts when it comes to performance, PERIOD. From Cars to Trucks to Powersports, Injen has a variety of exhaust systems to choose from. All of Injen Technology Performance exhaust systems are constructed from mandrel bent stainless steel tubing Mandrel-bending ensures the tubing maintains its shapes and size throughout the entire length, providing smooth, unrestricted airflow. From the Investment cast flanges to the custom hangers, all Injen exhaust systems are hand TIG welded and handcrafted in the USA and include all tubing, mufflers, and hardware necessary for a hassle free installation. Each system is uniquely designed to offer an aggressive sound that brings out some massive power. Like all other Injen products, the Injen exhaust systems are proudly built in Pomona, CA.

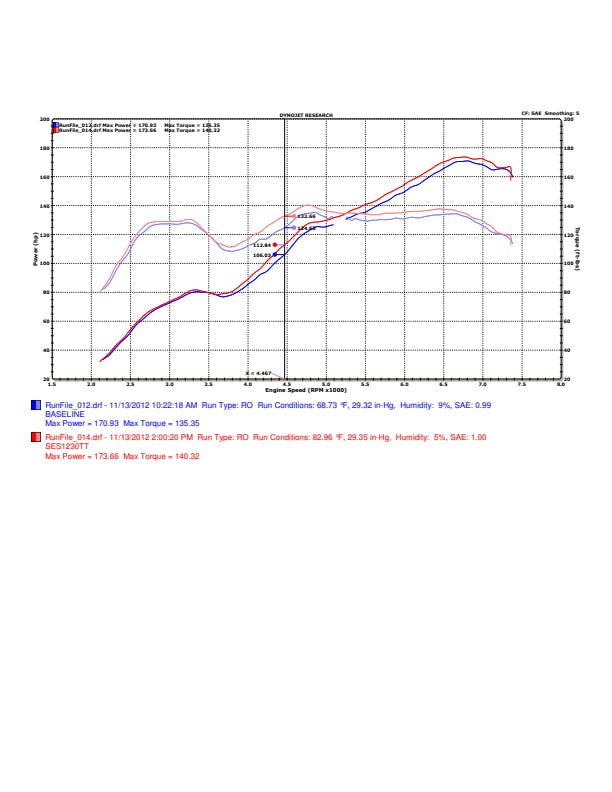

- Dyno Proven gains of up to 7 hp and 8 lb-ft. of torque
- Designed and Made in Pomona, CA
- Manufactured from 60MM Mandrel-Bent 304 Stainless Steel
- Dual 4.5? Burnt Titanium Quad-Tip design
- Custom integrated Y-Pipe for equal exhaust flow
- Dual Round Mufflers for exceptional sound and performance
- Stainless Steel Investment Cast Flanges For a Fast and Easy Install
- Hand Crafted and TIG Welded to Perfection for Strength and Durability
- Show Quality Embossed Stainless Steel Muffler
- Premium Stainless Steel Hardware and Hangers
Application Summary:
| Year |
Make/Model |
| 2013-2016 |
Scion FR-S |
| 2013-2020 |
Subaru BRZ |
| 2017-2020 |
Toyota 86 |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Compatible Throttle Controller |
PT0002B, PT0002B |
| Country of Origin (Primary) |
US |
| Emission Code |
Legal US |
| Exhaust System Connection |
Flanged, Flanged |
| Exhaust Type |
Single |
| Exit Position |
Rear |
| Finish |
Polished, Polished |
| Grade Type |
Performance, Performance |
| Hangers Included |
Yes, Yes |
| Hardware Included |
Yes, Yes |
| Harmonized Tariff Code (Schedule B) |
8708920000 |
| Hazardous Material Code |
N |
| Horse Power Increase |
7 HP |
| Life Cycle Status Code |
Available to Order |
| Material |
Stainless Steel |
| Muffler Body Diameter |
5.5, 5.5 |
| Muffler Body Length |
12, 12 |
| Muffler Body Material |
304 Stainless Steel, 304 Stainless Steel |
| Muffler Body Shape |
Round, Round |
| Muffler Count |
2 |
| Muffler Flanged Inlet |
Yes, Yes |
| Muffler Flanged Outlet |
No, No |
| Muffler Let Size |
2.375, 2.375 |
| Muffler Outlet Quantity |
1, 1 |
| Muffler Outlet Size |
3, 3 |
| Muffler Quantity |
2, 2 |
| NAFTA Preference Criterion Code |
B |
| Pipe Material |
304 Stainless Steel, 304 Stainless Steel |
| Primary Pipe OD |
2.375, 2.375 |
| SDR Required Flag |
N |
| Secondary Pipe OD |
2.375, 2.375 |
| Stepped Pipe Diameter |
No, No |
| System Type |
Cat Back |
| Tail Pipe Material |
Burnt Titanium, Burnt Titanium |
| Tail Pipe Outlet Outside Diameter |
4.5, 4.5 |
| Tail Pipe Quantity |
2, 2 |
| Tip Diameter |
N/A |
| Tip Finish |
Titanium Coated |
| Tip Size |
NA |
| Y-Pipe Included |
Yes, Yes |
| GTIN |
00843115019402 |
