For use in Circle Track and Professional Racing includes built-in Soft Touch Rev limiter
The 6 HVC-L Ignition has a built-in rev limiter that will save the engine from overrev damaged caused by spins, missed shifts or driver misfortune. This means there is no need to mount an external rev control (i.e., less wiring and reduced weight)!
The 6 HVC-L Ignition has a built-in rev limiter that will save the engine from overrev damaged caused by spins, missed shifts or driver misfortune. This means there is no need to mount an external rev control (i.e., less wiring and reduced weight)!
- 12-18 Volts, Negative Ground
- 150 millijoules per spark up to 15,000 RPM
- No CARB Exemption Order Number
- Clear epoxy potting compound for vibration protection and clear base plate for easy tech inspection

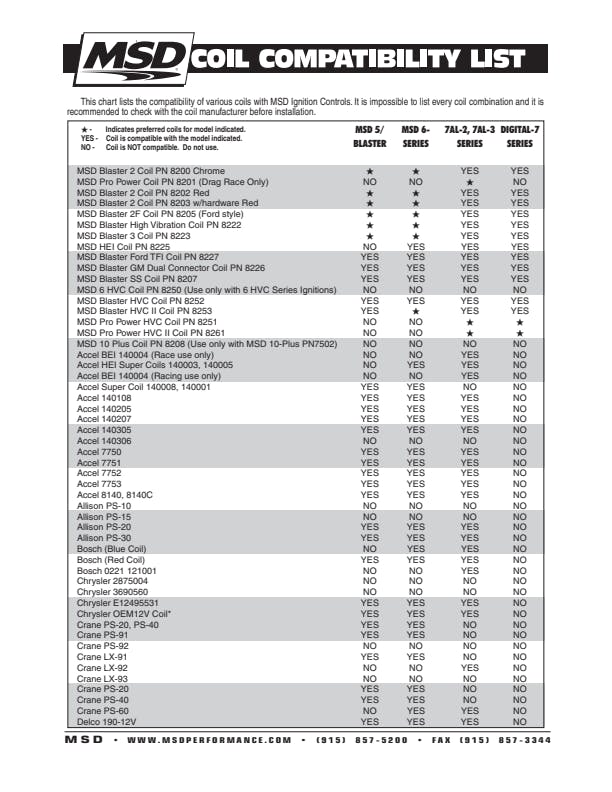

- Must be used with HVC Coil PN 8250
- 15,000 RPM with 14.4 Volts
- 6-pin Weathertight connector, mandatory for NASCAR use
- Accepts breaker points, amplifier and magnetic pickup trigger inputs
- Multiple sparks for 20 degrees of crankshaft rotation
- Includes built-in Soft Touch rev limiter
- 550 primary voltage output to coil
Information:
Designed for professional racing applications that demand high rpm for long periods of time| Attributes | |
| ASIN | B001PRQBQY |
| Brand | MSD, MSD |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category | Ignition, Ignition |
| Color | Black |
| Connector Gender | Male Female |
| Connector Quantity | 3 |
| Country of Origin (Primary) | US |
| Emission Code | 4, 4, Off Road |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8511804000 |
| Hazardous Material Code | N |
| Height | 2.25 |
| Ignition Type | Performance |
| Length | 8 |
| Life Cycle Status Code | Available to Order |
| Maximum RPM | 15,000 |
| Mount Type | Surface Mount, Surface Mount |
| Mounting Hardware Included | Yes, Yes |
| NAFTA Preference Criterion Code | B |
| part type | Ignition Control Module |
| Primary Voltage | 550, 550 Volts |
| Product Type | Ignition Box, Ignition Box |
| RPM | 15000 |
| RPM Range | 15,000 RPM with 14.4 Volts |
| Sale Category | Ignition |
| SDR Required Flag | N |
| Secondary Voltage | 40000, 40,000 Volts |
| Series | 6-Series Ignitions |
| Spark Duration | 20 Degree Crankshaft Rotation |
| Spark Energy | 150 mJ per spark, 150 mJ/spark |
| Spark Energy (mJ per spark) | 150 |
| Spark Series Duration | 20 Degree Crankshaft Rotation, 20 Degree Crankshaft Rotation |
| Sub Category | Control Modules, Control Modules |
| Subcategory | Racing Electronics |
| Terminal Gender | Male Female |
| Terminal Quantity | 11 |
| Voltage | 12-18 V; Negative Ground |
| Voltage Required | 12-18 Volts, Negative Ground, 12-18 |
| Warning | California Proposition 65, California Proposition 65 |
| Warranty | Limited 1 Year Warranty, Manufacturer's Limited 1 Year Warranty |
| Warranty Time | 12 |
| Weight and Size | 5.1 lbs.,8"L x 4"W x 2.25"H, 5.1 lbs.,8L x 4W x 2.25H |
| Width | 4 |
| GTIN | 00085132066322 |
