Universal - Use with Holley or MSD EFI Systems
It is compatible with Holley EFI and many other aftermarket electronic fuel injection systems and will run on traditional 12 volt or 16 volt electrical systems found in race applications.
It is compatible with Holley EFI and many other aftermarket electronic fuel injection systems and will run on traditional 12 volt or 16 volt electrical systems found in race applications.
- Built-in ignitor for compatibility with Holley EFI and many other aftermarket ECU’s
- Connector and Pins Included
- Available in red or black to match your build
- Maximum operating voltage of 17 volts – for compatibility with both 12 volt and 16 volt electrical systems found in many performance/race applications
- Same wiring pinout as other IGN-1A coils for easy plugin upgrades
- Low current draw means less demand on the electrical and charging system
- Direct bolt-on to Holley cast aluminum LS valve covers with 72mm bolt spacing
- More spark energy than any other IGN-1A smart coil on the market for maximum fuel burn during combustion sequence
- Elongated mounting holes to allow direct replacement of IGN-1A coils and will bolt in place of factory LS 1/2/3/6/7 coils with 72mm bolt spacing
Information:

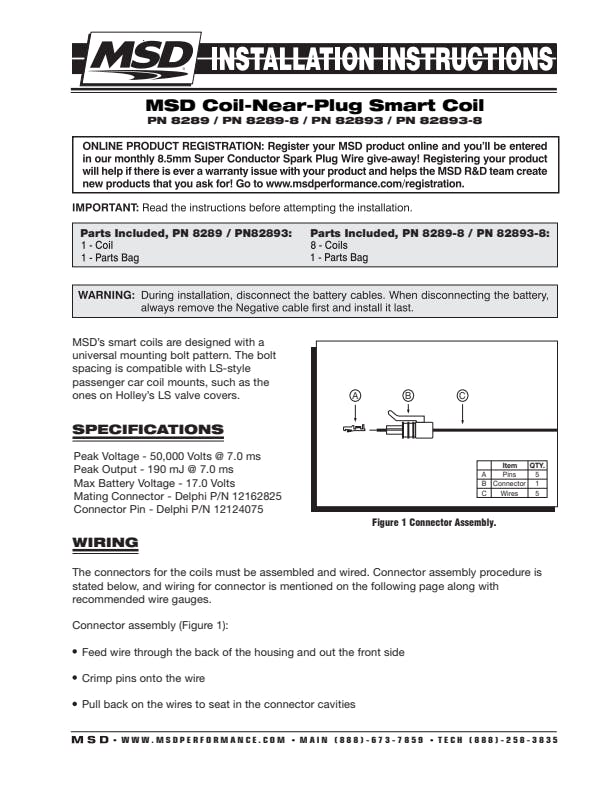

The supplied connectors and pins are "Pull to Seat " This means that you need to insert the wire through the connector from the back, crimp the pin and pull it back into the connector for assembly. Always use proper crimping tools to ensure a proper connection.| Attributes | |
| Brand | MSD |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category | Ignition, Ignition |
| Coil Type | Smart Coil |
| Color | Red, Red |
| Country of Origin (Primary) | CN |
| Emission Code | 3, 4, Off Road |
| Harmonized Tariff Code (Schedule B) | 8511300080 |
| Hazardous Material Code | N |
| Inductance | 5.2 mH |
| Inductance (mH) | 5.2 |
| Life Cycle Status Code | Available to Order |
| Maximum Voltage | 50,000 Volts, 50,000 |
| NAFTA Preference Criterion Code | B |
| part type | Ignition Coil |
| Peak Current | 201 mJ |
| Peak Current (mJ) | 201 |
| Primary Resistance | .55 Ohms, 0.55 |
| Product Type | Ignition Coil, Ignition Coil |
| Quantity | Individual, Individual |
| SDR Required Flag | N |
| Series | Smart Coils |
| Sub Category | Ignition Coil |
| Subcategory | Coils and Parts |
| Turns Ratio | 69:1, 2.8756944444444446 |
| Warning | California Proposition 65, California Proposition 65 |
| Warranty | Limited 1 Year Warranty, Manufacturer's Limited 1 Year Warranty |
| Warranty Time | 12 |
| GTIN | 00090127077252 |
