Low-profile, tall block, racing distributor must be used with an MSD 6, 7 or 8-series ignition and a crank trigger.
The MSD Crab Cap Distributors are built specifically for racing engines with almost no room for a distributor due to tunnel rams or blowers. The distributor is equipped with a special low-profile crab style distributor cap to allow it to fit in extremely tight areas.
The MSD Crab Cap Distributors are built specifically for racing engines with almost no room for a distributor due to tunnel rams or blowers. The distributor is equipped with a special low-profile crab style distributor cap to allow it to fit in extremely tight areas.
- 0.500” taller housing for extra tall Chevrolet based engine blocks
- CNC machined billet aluminum housing and Dupont Rynite base
- Adjustable slip collar for engines with modified deck heights
- Shaft is guided by a sealed ball bearing and an extra long sintered bushing
- Designed to fit low in the block to clear firewall and intake combinations

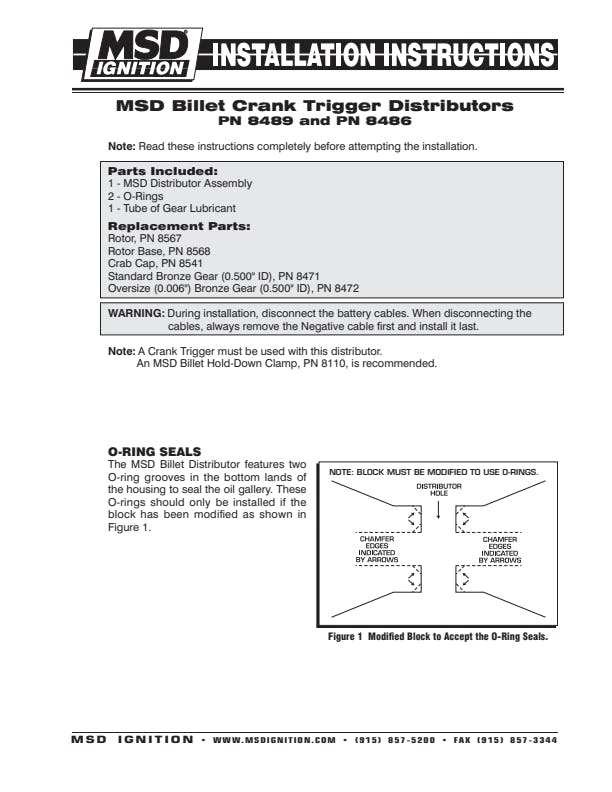

- O-ring seals can be added to modified blocks to improve oil pressure control
- Supplied with small, low crab style distributor cap, rotor and bronze gear
- Must be used with an MSD Crank Trigger and MSD Ignition Control
- Special oil tract improves lubrication to the distributor and cam gear
- Oversized polished steel shaft with a QPQ coating for friction reduction
| Attributes | |
| ASIN | B000ECJIXY |
| Brand | MSD, MSD |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category | Ignition, Ignition |
| Color | Red, Red |
| Country of Origin (Primary) | US |
| Distributor Cap Included | Yes |
| Distributor Gear | Bronze |
| Distributor Type | Crank Type w/Mech. Tach Drive, Crank Trigger |
| Emission Code | 5, 5 |
| Engine Make/Size | Chevy Big Block (396-454), Chevy Small Block (262-400) |
| Gear | Bronze, Bronze |
| Gear Material | Bronze |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8511300040 |
| Hazardous Material Code | N |
| Ignition Box Required | Yes |
| Ignition Coil Included | No |
| Ignition Rotor Included | Yes |
| Life Cycle Status Code | Available to Order |
| NAFTA Preference Criterion Code | B |
| part type | Distributor, Distributor |
| Product Type | Distributor, Distributor |
| SDR Required Flag | N |
| Series | Crank Trigger Distributors |
| Sub Category | Distributor and Magneto, Distributor and Magneto |
| Subcategory | Crank Trigger Kits and Accessories |
| Warning | California Proposition 65, California Proposition 65 |
| Warranty | Limited 1 Year Warranty, Manufacturer's Limited 1 Year Warranty |
| Warranty Time | 12 |
| GTIN | 00085132084869 |
