4.5 - 9 PSI range

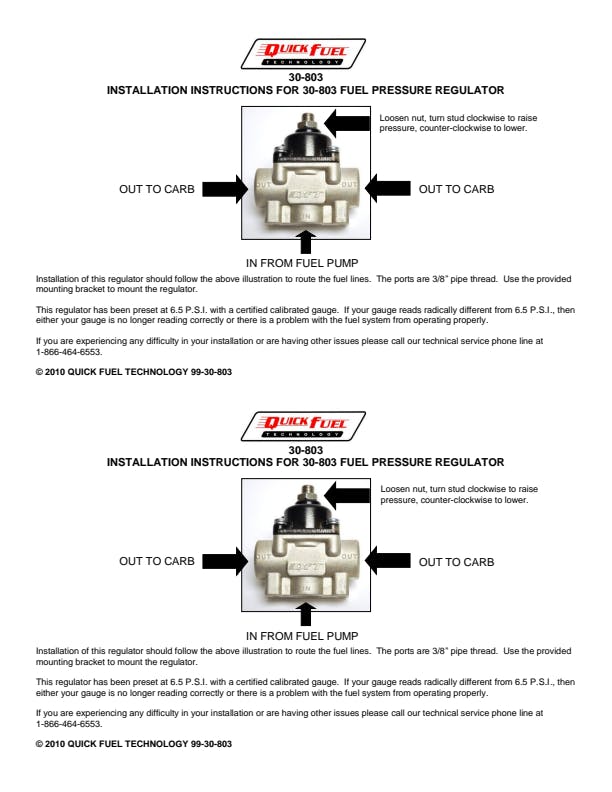

Pressure Regulator - Cast body with powder coated black top. Features 30cc diaphragm and mounting bracket with hardware. 3/8" NPT ports (single inlet, dual outlet).
Pressure Regulator - Cast body with powder coated black top. Features 30cc diaphragm and mounting bracket with hardware. 3/8" NPT ports (single inlet, dual outlet).
- •Supports 4-barrel gas engines up to 600 HP
- •Designed to operate within 4.5 - 9 PSI range; Preset at 7 PSI
- •.250" (1/4") restriction
- •Includes mounting bracket
- •Includes an 1/8" NPT port for manifold reference
- Boost Reference 1-1
| Attributes | |
| Adjustable | Yes |
| Alternate Part Number | 30-803 |
| ASIN | B003M8YJ1S |
| Brand | Quick Fuel, Quick Fuel Technology |
| California Proposition 65 | No |
| Category | Air and Fuel Delivery |
| Color | Black, Black |
| Country of Origin (Primary) | US |
| Emission Code | 5, 5 |
| Fuel Type | Gasoline, Gasoline |
| Gauge Included | No |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Hazardous Material Code | N |
| Inlet Gender | Female |
| Inlet Port Diameter | 3/8, 3/8 |
| Inlet Port Quantity | 1 |
| Inlet Type | NPT |
| Life Cycle Status Code | Available to Order |
| Material | Aluminum, Aluminum |
| Maximum Pressure | 9 |
| Minimum Pressure | 4.5 |
| Mounting Bracket Included | Yes |
| NAFTA Preference Criterion Code | B |
| Outlet Gender | Female |
| Outlet Port Diameter | 3/8, 3/8 |
| Outlet Port Quantity | 2 |
| Outlet Type | NPT |
| part type | Fuel Pressure Regulator |
| Product Type | Regulator, Fuel Pressure Regulator |
| Sale Category | Air and Fuel Delivery |
| SDR Required Flag | N |
| Style | Carbureted, Carbureted |
| Sub Category | Carburetion |
| Warranty | Limited 90 Day, Manufacturer's Limited 90 Day Warranty |
| GTIN | 00849804006968 |
