SmartWire PDM with Switch Panel (8 Channel)
Manual activation can be achieved through the use of the optional eight switch Racepak switch panel (500-SW-PNL8), or 16-channel switch module (500-SW-SM16). From the Racepak SmartWire unit, a single small cable is routed to the Switch panel of choice, reducing wiring clutter. Users needing additional switch panel capabilities can easily expand through the use of a "jumper" cable to a second Racepak Switch Panel or Switch Module.
Manual activation can be achieved through the use of the optional eight switch Racepak switch panel (500-SW-PNL8), or 16-channel switch module (500-SW-SM16). From the Racepak SmartWire unit, a single small cable is routed to the Switch panel of choice, reducing wiring clutter. Users needing additional switch panel capabilities can easily expand through the use of a "jumper" cable to a second Racepak Switch Panel or Switch Module.
- 125 Total Amp Capacity
- 30 Total Output Channels
- Output Protection: User definable over current limits. Internal short circuit and/or thermal overload (non definable)
- 8 Channels @ 20 Amps Maximum for high amperage applications such as electric fuel pumps or starter solenoids.
- 22 Channels @ 10 Amps Maximum for low amperage applications such as head lights, turn signals, or small cooling fans.
- 12 Hardwired Switched Inputs - Voltage triggered >2.7V or Ground Triggered <2.5V
- Data Output: Volts, Amps, Status (On/Off).
- Test Mode: This software integrated feature allows you to quickly determine if an input or output is working as intended.
- Response Time: 3.0 Miliseconds

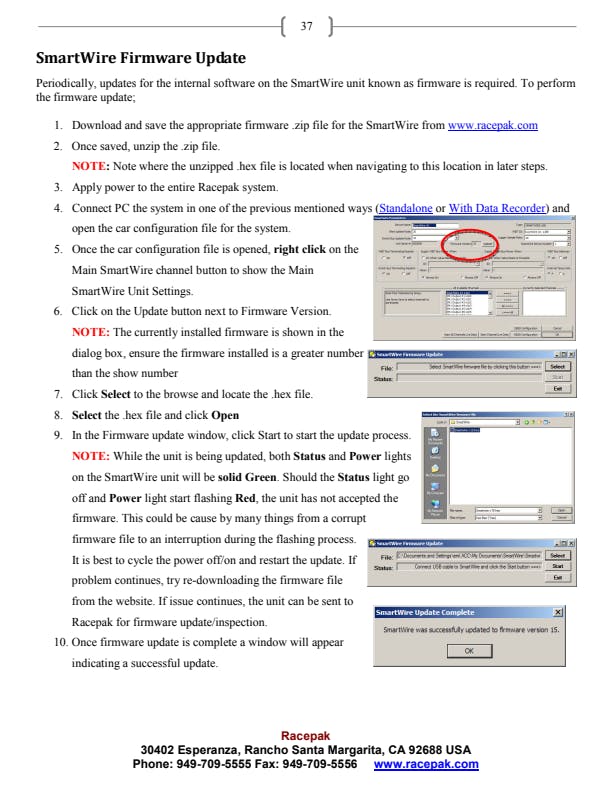

- Programming: USB Cable w/ Free Datalink II Software
- Dimensions: 6" (L) x 5.5" (W) x 1.5" (H)
- Connectors: Two - 23 pin Ampseal, One 1/4" x 20 Main Power Stud, One mini USB (for programming), One Switch CAN bus (for optional switch panel or module), One V-Net CAN bus for optional V-net accessories, such as sensors).
- Includes - Drag Smartwire Harness - Switch Panel - Smartwire to Switch Panel cable, and Programming Cable.
- Min/Max Power Supply: 8-20 Volts
- Operating Power Supply: 12-16 volt automotive applications
Information:
This device is not designed to power ignition coils of any type directly.| Attributes | |
| Application | Drag Racing |
| Brand | Racepak |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category | Body |
| Country of Origin (Primary) | US |
| Emission Code | 5, 5 |
| Emission Code Description | Part does not affect Vehicle Emissions |
| Harmonized Tariff Code (Schedule B) | 8537200020 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| Model | 500-KT-SWDRAG, 500-KT-SWDRAG |
| NAFTA Preference Criterion Code | B |
| part type | Data Acquisition Module |
| Product Type | SmartWire PDM, SmartWire PDM |
| SDR Required Flag | N |
| Sub Category | Control Modules |
| Warning | California Proposition 65, California Proposition 65 |
| GTIN | 00815046024442 |
